StrikerII Plus – High Pressure Pump

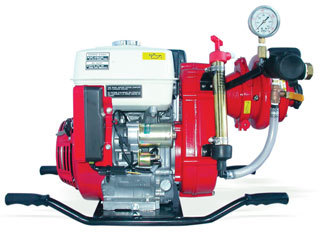

STRIKER II-PLUS® - Portable 2-Stage Fire Pump

The WATERAX Striker II-Plus® pump provides high-pressure streams for direct attack or volume flow for water delivery.

It can be used by itself, in tandem, or in parallel with other WATERAX pumps. It is also a popular choice for Slip-on applications.

The 4-stroke 13 hp Honda engine makes for ease of operation and meets the current emission standards of the EPA and CARB regulations. The 2-stage detachable pump end, the exclusive Wildfire check valve, and our dedication to quality guarantees superior performance and reliability in the field.

Engine Specifications
Engine Honda® model GX390
4-cycle, air-cooled
Single cylinder, overhead valve
Maximum power 13 HP (10 kW)
Starting system Electric with backup recoil starter
Ignition system Transistorized magneto
Stroke 2.52" (64 mm)
Bore 3.46" (88 mm)
Displacement 389 cc (23.7 cubic inches)
Lubrication Oil (splash)
Oil capacity 1.16 US quarts (1.1 L)
Integral fuel tank 1.72 US gals (6.5 L)

Pump Unit Specifications� Detachable 2-stage centrifugal pump end, Model 25-16
� Hand primer
� Quick release pump clamp
� Belt driven speed increaser (See parts breakdown page 11-13)
� Lightweight aluminum alloy pump parts
� Anodized pump parts for corrosion resistance
� Stainless steel shaft
� Mechanical rotary seal with blister-resistant carbon seal face
and a silicone carbide seat
� Governor system for overspeed protection
� 2" (51 mm) NPSH suction threads
� 1 1/2" (38 mm) NPSH discharge threads
� Fuel consumption 1.14 US gal/hour (4.3 L /hour)

Length 33" (84 cm)
Width 21" (54 cm)
Height 21" (54 cm)
Weight 126 lbs (57 kg)

� Honda 4-stroke Engine
� Electric starter
� Low oil protection
� Hand pump priming system
� Wildfire checkvalve
� Pressure gauge GAUGE-1
� Inlet & outlet protective caps
� Compatible with foam applications
� Powder coated steel carry frame with vinyl grips
� US Forest Service approved spark arrestor

� Striker II-Plus® slip version pump � less gauge, primer,
checkvalve and frame BB-26E-PLUS
� Thread protector 2" (51 mm) NPSH A-2688
� Thread protector 1 1/2" (38 mm) NPSH, NH or
1/4-turn (ADP-A-FM15S, ADP-L-FM15SN or FA-4)
� Battery and cable kit A-7612
� Full control panel 180-005-01 (See page 21)
� Pump end tool kit A-2356

Maximum Pressure: 230 PSI (1586 kPa)
Free flow: 105 US gals/min (397 L /min)
Maximum Head: 531' (162 m)
